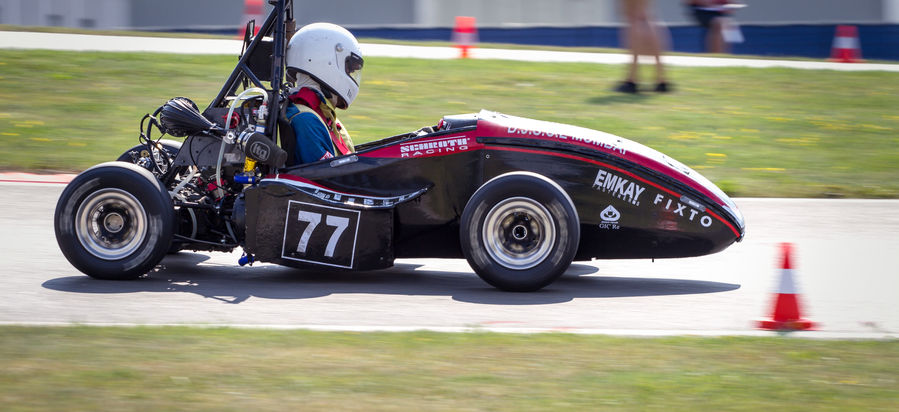

DJSR 04

DJSR 04’s first competition was the prestigious Formula Student Austria 2018 held in Red Bull Ring, Spielberg, Austria where the team ranked overall 23 rd . The team also bagged its first ever International Achievement of Winning the “Cost and Manufacturing Event“, which is the best result so far in the history of DJS Racing.

Weight - 170 kgs


Chassis

AISI 1018 Steel Tubular Spaceframe.
Self-Designed and Optimised Aluminium 7075 Removable Rear Bulkhead
Ergonomically designed according to the needs of the drivers
Compact and lightweight Aluminium Honeycomb Impact Attenuator

Steering

3D Printed Ergonomic Steering Wheel
Carbon Fibre Steering Column
Krontec Quick Release
Carbon Fibre Tie and Toe Rods
Newly Incorporated Gear Shifting and Clutch Actuation Paddles

Aerodynamics and composites

In-house manufactured CFRP Bodyworks and Undertray
CFRP seat designed specifically for the drivers
All components manufactured using Vacuum Bagging process
Lantor Soric Core Material incorporated for stiffness

Electronics

Custom Programmable Performance Electronics PE3 ECU
Custom Wiring Harness. Custom Power Distribution Module
Paddle Controlled Servo Motor Actuated Clutch
RaceCapture Pro MK3 Data Logger and Telemetry

Suspension

Double Unequal Length CFRP A-Arms
Push/Pull Rod Actuation at the Front and Rear
Ohlins TTX125 Adjustable Damping System
Hoosier R25B 18 x 6 – 10” Racing Tires
Keizer Aluminium Rims
3 Way Adjustable Stiffness Z Type Anti-Roll Bar

Brakes

Self-Designed Custom Rotor
Driver Adjustable Ergonomic Pedal Box Assembly
ISR Front Calipers and Custom Calipers for Rear Wheels

Engine

Water Cooled KTM RC 390 Engine
Self-Designed Cooling System
Intake Manifold 3D Printed with HP Multi Jet Fusion Technology
Custom Made Lightweight Titanium Exhaust Header and Muffler
High Performance In-line Fuel System
ECU : PE3

Transmission

Power Transmission via Chain on Rear Axle
6 Speed Sequential Transmission System
Paddle Controlled Electro-Pneumatic Gear Shifting System
Drexler Limited Slip Differential


achievements

Formula Student Austria 2018

Formula Bharat 2019

Only Indian team to bring 2 cars to the competition (DJSR 04 and DJSR E01)

1st in Cost Event

16th in Business Plan Presentation

17th in Design Event

23rd Overall

2nd in Design Event

3rd in Cost Event

4th in Endurance

4th Overall
